PRODUCT DESCRIPTION

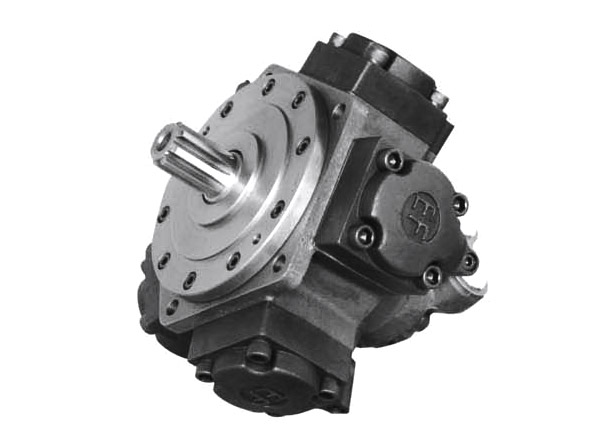

YJMDN is one kind of low speed high torque radial piston hydraulic motor. It can be widely applied in petroleum industry, chemical industry,mining, shipping, constructing machinery, especially for plastic injection molding machinery, hydraulic winch, transmission etc.
Technical parameters:
Type | Displacement (ml/r) | Pressure(Mpa) | Rated Torqu (N.m) | Rated Torqu (N.m) | Speed Range (r/min） | Rated Rotational speed (r/min) | Weight (kg) | |
Rated Pressure | Max Pressure | |||||||
YJMEF8-600 | 617 | 25 | 32 | 2333 | 93 | 4-500 | ≤350 | 71 |
YJMEF8-700 | 710 | 25 | 32 | 2685 | 107 | 4-400 | ≤280 | 71 |
YJMEF8-800 | 810 | 20 | 25 | 2450 | 123 | 4-400 | ≤280 | 71 |
YJMEF8-900 | 889 | 20 | 25 | 2689 | 134 | 4-350 | ≤240 | 71 |
YJMEF8-1000 | 1000 | 16 | 20 | 2420 | 151 | 4-300 | ≤210 | 71 |
